UBA-SNS (Semantic Network Service) arc42 section 6

Runtime View

This view addresses the dynamic aspects of SNS and shows how the individual parts work together.

To help understand the following scenarios, here is a brief explanation of the terminology used in SKOS (Simple Knowledge Organization System) and therefore in iQvoc:

  • Concept: central element of SKOS. Concepts represent the idea behind a term.
  • Label: assigned to the concept established in step 1. There are two types of labels: prefLabel (preferred label) and altLabel (alternative label). prefLabel serves as the preferred designation of a concept, altLabel as additional alternative designation(s). Put simply, prefLabel corresponds to the descriptor and altLabel to the non-descriptor from thesauri.

Similar Terms

Preconditions

  • No precondition (e.g. login) is necessary.

Process

Process of SimilarTerms using the example input “baum” from https://github.com/innoq/iqvoc_umt/issues/437

  1. Search in the current language for all labels (whether pref or alt) that contain the spelling “baum”:
    • Search input: terms = "baum", lang = de
labels = [
   Baum (https://sns.uba.de/umthes/de/labels/TH_00003834.html)
]
  1. Collect the connected concepts from the previous label search:
concepts = [
   Baum (https://sns.uba.de/umthes/de/concepts/_00003834.html)
]
  1. Create a preliminary result set with the labels of the found concept, including weighting:
    • Weighting factors:
      • 'Labeling::SKOSXL::PrefLabel' => 5
      • 'Labeling::SKOSXL::AltLabel' => 2
      • 'Labeling::SKOSXL::HiddenLabel' => 1
    • The intermediate result is expanded over the course of the process
Zwischenergebnis = {
  "Baumphysiologie" = [2, https://sns.uba.de/umthes/de/concepts/_00003834.html]
  "Baumwachstum" = [2, https://sns.uba.de/umthes/de/concepts/_00003834.html]
  "Pionierbaumart" = [2, https://sns.uba.de/umthes/de/concepts/_00003834.html]
  "Baumkrankheit" = [2, https://sns.uba.de/umthes/de/concepts/_00003834.html]
  "Baumplantage" = [2, https://sns.uba.de/umthes/de/concepts/_00003834.html]
  "Nährstoffversorgung von Bäumen" = [2, https://sns.uba.de/umthes/de/concepts/_00003834.html]
  "Baumpflanzung" = [2, https://sns.uba.de/umthes/de/concepts/_00003834.html]
  "Baum" = [5, https://sns.uba.de/umthes/de/concepts/_00003834.html]
}
  1. Narrower/Related analysis (find_related_and_narrower_concepts):
    • Collect narrower and related concepts for the concept “Baum” in a new data structure
    • Process:
      • add narrower terms
      • add related terms
      • add compound-in compositions (only if a. and b. produce no results)
related/narrower = [
    Baumstamm (https://sns.uba.de/umthes/de/concepts/_00003860.html)
    Waldbaum (https://sns.uba.de/umthes/de/concepts/_00027032.html)
    Baumform (https://sns.uba.de/umthes/de/concepts/_00030245.html)
    Obstbaum (https://sns.uba.de/umthes/de/concepts/_00030595.html)
    Speierling (https://sns.uba.de/umthes/de/concepts/_00603839.html)
    Kakaobaum (https://sns.uba.de/umthes/de/concepts/_00604135.html)
    Nussbaum (https://sns.uba.de/umthes/de/concepts/_00649690.html)
    Biotopbaum (https://sns.uba.de/umthes/de/concepts/_00655034.html)
    Kautschukbaum (https://sns.uba.de/umthes/de/concepts/_00666651.html)
    Stadtbaum (https://sns.uba.de/umthes/de/concepts/_00023103.html)
    Straßenbaum (https://sns.uba.de/umthes/de/concepts/_00023670.html)
    Laubbaum (https://sns.uba.de/umthes/de/concepts/_00015861.html)
    Nadelbaum (https://sns.uba.de/umthes/de/concepts/_00017738.html)
    Baumart (https://sns.uba.de/umthes/de/concepts/_00003837.html)
    Baumkrone (https://sns.uba.de/umthes/de/concepts/_00003849.html) <-- bis hier Spezifischere Begriffe/Narrower
    Baumfällung (https://sns.uba.de/umthes/de/concepts/_00003846.html) <-- ab hier neu Verwandte Begriffe
    Baumschutz (https://sns.uba.de/umthes/de/concepts/_00003855.html)
    Baumwurzel (https://sns.uba.de/umthes/de/concepts/_00003867.html)
    Dendrometrie (https://sns.uba.de/umthes/de/concepts/_00006549.html)
    Baumgrenze (https://sns.uba.de/umthes/de/concepts/_00030248.html)
    Dendrologie (https://sns.uba.de/umthes/de/concepts/_00030298.html)
    Windbruch (https://sns.uba.de/umthes/de/concepts/_00051506.html)
    Palmen (https://sns.uba.de/umthes/de/concepts/_00608682.html)
    Baumschule (https://sns.uba.de/umthes/de/concepts/_00003854.html)
    Baum des Jahres (https://sns.uba.de/umthes/de/concepts/_00045805.html)
    Baumschaden (https://sns.uba.de/umthes/de/concepts/_00003852.html)
    Baumrinde (https://sns.uba.de/umthes/de/concepts/_00003851.html)
    Holz (https://sns.uba.de/umthes/de/concepts/_00028848.html)
]
  1. Add terms from step 4 to the intermediate results:
    • Weighting = 1
    • Weighting increases by 1 each time a concept is present with two different labels
Zwischenergebnis = {
  "Baumphysiologie" = [2, 'https://sns.uba.de/umthes/de/concepts/_00003834']
  "Baumwachstum" = [2, 'https://sns.uba.de/umthes/de/concepts/_00003834']
  "Pionierbaumart" = [2, 'https://sns.uba.de/umthes/de/concepts/_00003834']
  "Baumkrankheit" = [2, 'https://sns.uba.de/umthes/de/concepts/_00003834']
  "Baumplantage" = [2, 'https://sns.uba.de/umthes/de/concepts/_00003834']
  "Nährstoffversorgung von Bäumen" = [2, 'https://sns.uba.de/umthes/de/concepts/_00003834']
  "Baumpflanzung" = [2, 'https://sns.uba.de/umthes/de/concepts/_00003834']
  "Baum" = [5, 'https://sns.uba.de/umthes/de/concepts/_00003834']
  "Baumstamm" = [1, 'https://sns.uba.de/umthes/de/concepts/_00003860'] <-- ab hier neue Narrower/Related
  "Waldbaum" = [1, 'https://sns.uba.de/umthes/de/concepts/_00027032']
  "Baumform" = [1, 'https://sns.uba.de/umthes/de/concepts/_00030245']
  "Obstbaum" = [1, 'https://sns.uba.de/umthes/de/concepts/_00030595']
  "Speierling" = [1, 'https://sns.uba.de/umthes/de/concepts/_00603839']
  "Kakaobaum" = [1, 'https://sns.uba.de/umthes/de/concepts/_00604135']
  "Nussbaum" = [1, 'https://sns.uba.de/umthes/de/concepts/_00649690']
  "Biotopbaum" = [1, 'https://sns.uba.de/umthes/de/concepts/_00655034']
  "Kautschukbaum" = [1, 'https://sns.uba.de/umthes/de/concepts/_00666651']
  "Baumfällung" = [1, 'https://sns.uba.de/umthes/de/concepts/_00003846']
  "Baumschutz" = [1, 'https://sns.uba.de/umthes/de/concepts/_00003855']
  "Baumwurzel" = [1, 'https://sns.uba.de/umthes/de/concepts/_00003867']
  "Dendrometrie" = [1, 'https://sns.uba.de/umthes/de/concepts/_00006549']
  "Baumgrenze" = [1, 'https://sns.uba.de/umthes/de/concepts/_00030248']
  "Dendrologie" = [1, 'https://sns.uba.de/umthes/de/concepts/_00030298']
  "Windbruch" = [1, 'https://sns.uba.de/umthes/de/concepts/_00051506']
  "Palmen" = [1, 'https://sns.uba.de/umthes/de/concepts/_00608682']
  "Baumschule" = [1, 'https://sns.uba.de/umthes/de/concepts/_00003854']
  "Stadtbaum" = [1, 'https://sns.uba.de/umthes/de/concepts/_00023103']
  "Straßenbaum" = [1, 'https://sns.uba.de/umthes/de/concepts/_00023670']
  "Baum des Jahres" = [1, 'https://sns.uba.de/umthes/de/concepts/_00045805']
  "Laubbaum" = [1, 'https://sns.uba.de/umthes/de/concepts/_00015861']
  "Nadelbaum" = [1, 'https://sns.uba.de/umthes/de/concepts/_00017738']
  "Baumart" = [1, 'https://sns.uba.de/umthes/de/concepts/_00003837']
  "Baumschaden" = [1, 'https://sns.uba.de/umthes/de/concepts/_00003852']
  "Baumkrone" = [1, 'https://sns.uba.de/umthes/de/concepts/_00003849']
  "Baumrinde" = [1, 'https://sns.uba.de/umthes/de/concepts/_00003851']
  "Holz" = [1, 'https://sns.uba.de/umthes/de/concepts/_00028848']
}
  1. Sort the intermediate results by weighting and output the result. This results in a result set of 36 similar terms.

Automatic Keyword Assignment with AutoClassify (Plain Text)

Preconditions

  • No precondition (e.g. login) is necessary.

Process

The AutoClassify process is divided into five main phases:

  1. Document preparation: input validation, text combination and normalization
  2. Linguistic analysis: tokenization, phrase recognition, and language-specific processing
  3. Thesaurus matching: hash-based search and database queries
  4. Advanced term processing: homograph resolution and compound form recognition
  5. Concept assignment and weighting: label-to-concept mapping and ranking

Technical Processing Flow

As an example, the title of the article “Schwammstadt: Der Städtebau der Zukunft - Grün in die Stadt”1 is used.

  1. The user’s keyword assignment request is forwarded/dispatched by the reverse proxy to the SNS subsystem UMTHES into the Plain Controller.
  2. Instantiation of a new Document::Plain with the title and content of the keyword assignment request.
  3. Keyword assignment is started by calling the classify! method:
    • previous keyword assignment results for the document are removed (classifications.destroy_all)
    • the concepts method starts the analysis, calls determine_concepts, which in turn starts determine_labels
    • the text to be keyword-assigned is split into sentences by DocumentParser::German (PragmaticSegmenter)
    • German language normalization by DocumentParser::German.normalize_sentence:
      • removal of stop words: ['oder']
      • elimination of irrelevant abbreviations: ['ca.', 'etc.', 'usw.', 'bzw.', 'vgl.', 'evtl.', 'P.S.', 'z. B.', 'd. h.', 's. o.', 'u.a.', 'z. T.', 'z. Zt.', 'i. A.', 'i. V.', 'i. d. R.', 'Min.', 'min.', 'Mio.', 'Mrd.', 'Nr.', 'Dr.', 'Prof.', 'Fa.', 'ff.']
    • tokenization by DocumentParser::Base along delimiters [' ', "\t", ',', ':', ';', '"', "'", '(', ')']
    • token normalization by TokenNormalizer.do_it (German special characters are preserved)
    • instantiation of a new WordMatcher instance with the sentence array
    • the WordMatcher is used to find labels (def labels in WordMatcher). For this, the previously formed individual sentences are iterated over:
      • phrase_recognition_variants: to find multi-word terms, phrase variants of increasing size are formed (e.g. “schwammstadt der”, “der städtebau”, “städtebau der”, “der zukunft”, “schwammstadt der städtebau”, “der städtebau der zukunft”)
      • add_non_dotted_variants: for special handling of phrases with periods, additional variants without a period are added (e.g. “CO₂-Äquiv.” → “CO₂-Äquiv.” and “CO₂-Äquiv”)
      • find_existing_inflectionals: the previously collected phrases are used to find and return variants in the database (e.g. “schwammstadt”, “stadt”, “städtebau” are found as existing inflectional forms)
      • remove_duplicate_word_partials: ensures that more specific variants of phrases are preferred over more general ones (e.g. ["monetäre bewertung von umweltschäden", "monetäre bewertung"] => ["monetäre bewertung von umweltschäden"])
      • label_index: the hashes (for a more efficient search) of the cleaned variants are used to find labels for the inflectional forms:
        • “schwammstadt” → Hash ae9fc10c8688d3889701b94d504fd56a → Label-ID 107562
        • “städtebau” → Hash cfbe280de98e35e5e7a6601f21aba0c4 → Label-ID 171360
        • “stadt” → Hash 37b9e141bf7fa3a8f592e2f56fb5de18 → Label-ID 194652
      • homographs(label_seqs): combines label IDs into homographs/qualifiers (e.g. label ID 95326 “Berlin [Stadt]” has both homograph 132357 “Berlin” and qualifier 194652 “Stadt”, both of which occur in the text. This replaces the ambiguous label “Berlin” with “Berlin[Stadt]”)
      • compound_forms(label_seqs): combines label IDs into compound labels, if the option is enabled
      • remove_autoclassify_disabled_label_seq(label_seqs): removes labels for which AutoClassify was explicitly disabled
      • the labels found per sentence are collected and returned for the entire document
    • the label result set is iterated over in determine_concepts:
      • labels of unpublished concepts are filtered out (!concept.published?)
      • labels of expired concepts are filtered out (concept.expired?)
      • labels of disabled concepts are filtered out (!concept.auto_classify?), only if exclude_disabled_concepts is enabled
      • labels of collections are explicitly excluded (.where.not(labelings: { owner_type: Iqvoc::Collection.base_class_name }))
      • remaining labels are used to find concepts in the text corpus, with weighting by designation type:
        • 'Labeling::Skosxl::PrefLabel' => 1.0
        • 'Labeling::Skosxl::AltLabel' => 0.8
        • 'Labeling::Skosxl::HiddenLabel' => 0.3
      • Title bonus: concepts from the document title receive fivefold weighting (determine_title_concepts)
      • Relationship analysis: relationships of the found concepts are used to refine the weighting, with configurable factors:
        • Broader relation: 1.5x
        • Narrower relation: 2.0x
        • Related relation: 1.3x
      • Classification objects are created and sorted by weighting
      • create_classification_trace stores the complete processing trace as JSON (e.g. @trace for the “Schwammstadt” title):
        • token_index: {"schwammstadt der städtebau...": ["-", "in", "die", "der", "grün", "stadt", "zukunft", "städtebau", "schwammstadt"]}
        • label_index: {"schwammstadt der städtebau...": [194652, 171360, 107562]}
        • homograph_index: {"schwammstadt der städtebau...": []}
        • result_index: {"schwammstadt der städtebau...": [194652, 171360, 107562]}
  4. Concepts found in the text corpus are returned to the requesting user via the Plain Controller of UMTHES through the reverse proxy.

Illustration

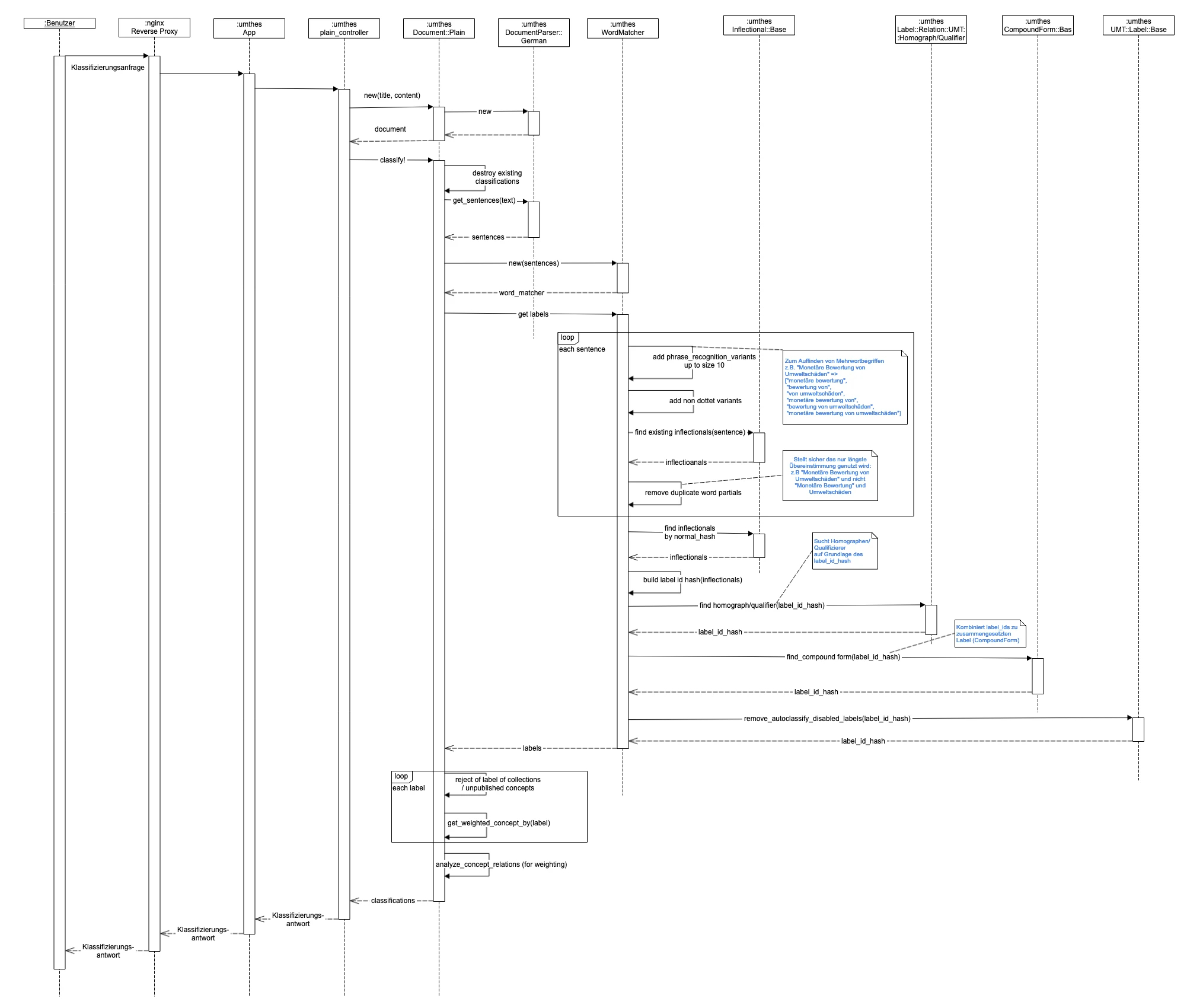

AutoClassify process

  1. https://www.gruen-in-die-stadt.de/schwammstadt/, last accessed: 20.07.2025 ↩
