Context and Scope

Business Context

The PoC implements the bounded context Analysis of the company’s target architecture. It is in a partnership with Manufacturing and is separated from SAP ERP and CRM by an anti-corruption layer. The context view shows the subsystem as a blackbox; chapter 5 opens it into six building blocks, and IAnalysis corresponds to the coordinator endpoint.

Technical Context

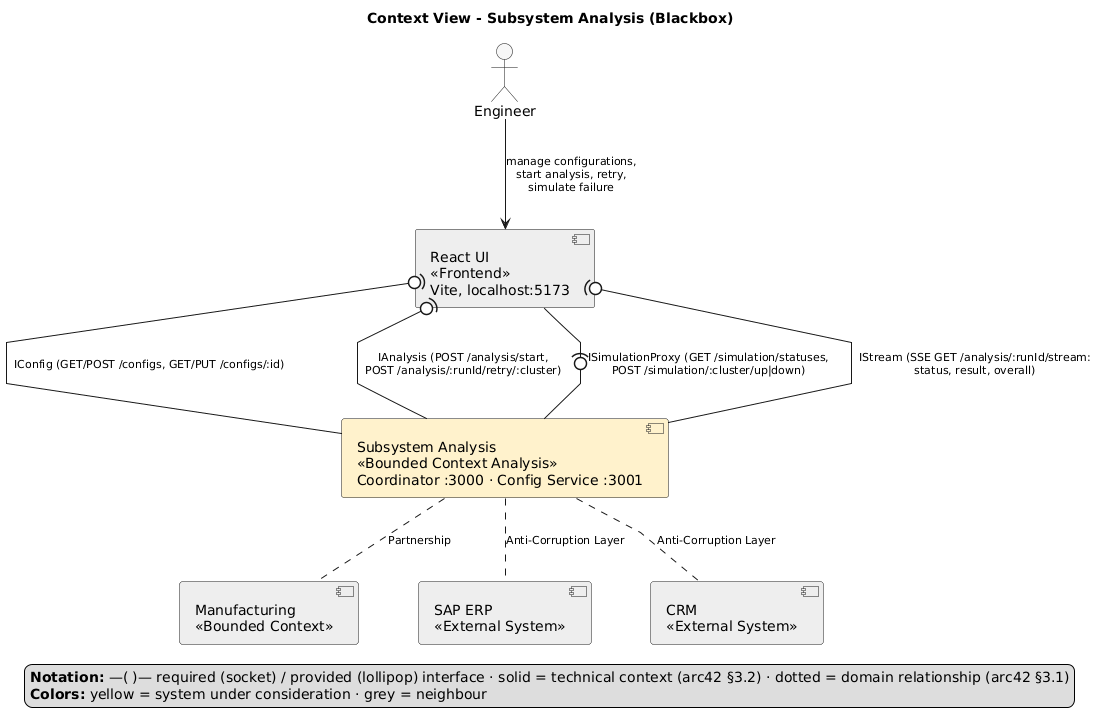

The UI uses three REST interfaces: the config service (GET/POST /configs, GET/PUT /configs/:id), the coordinator (POST /analysis/start, POST /analysis/:runId/retry/:cluster) and its simulation proxy (GET /simulation/statuses, POST /simulation/:cluster/up|down); status, result and overall flow back as SSE via GET /analysis/:runId/stream. Between the services, POST /analyze with AnalyzeRequest = { runId, source? } represents the transitions of the choreography; source is only permitted for EMS and restricted there to Drivetrain or Mechanical. Kafka carries analysis-status ({ runId, cluster, status }, consumed by coordinator and EMS), analysis-result ({ runId, cluster, results[] }, by the coordinator) and analysis-retry ({ runId, cluster }, to the algorithm services) – each consumer with its own consumer group.
