WirSchiffenDas arc42 section 5
Building Block View

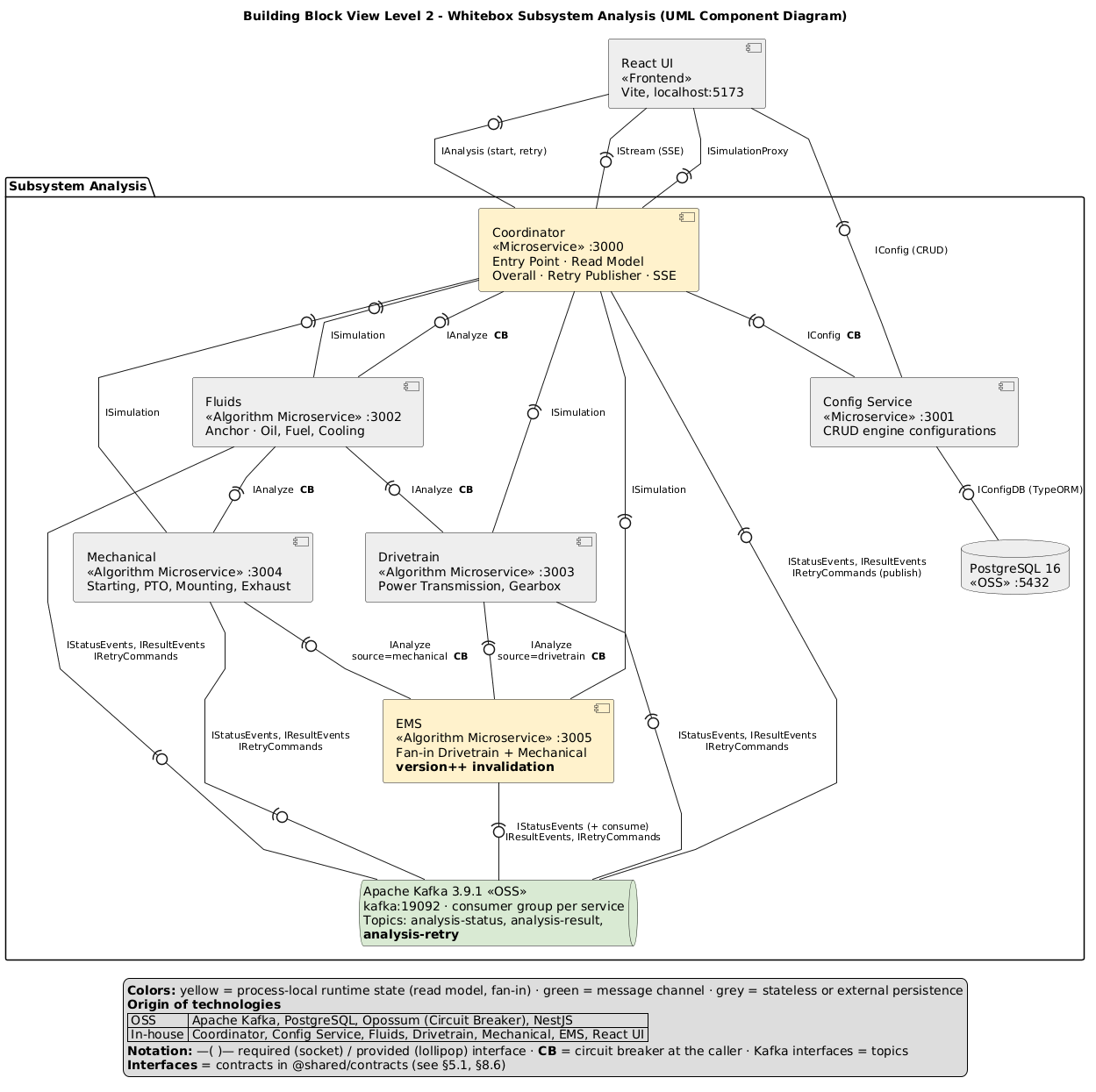

The whitebox of the subsystem Analysis shows the six services, PostgreSQL, Kafka, the provided and required interfaces and the six REST edges protected by circuit breakers; the legend gives the colour coding (yellow = process-local runtime state, green = message channel, grey = stateless) and the origin of the technologies (OSS / in-house).
Whitebox Analysis Subsystem
| Building block | Responsibility | Dependencies |
|---|---|---|
| Coordinator | Config check, runId, anchor start, retry entry point, simulation proxy, run projection, overall, SSE |
Config service, Fluids, Kafka; for simulation all algorithm services |
| Config service | CRUD and persistence of the engine configurations | PostgreSQL |
| Fluids | Analysis of Oil, Fuel and Cooling System; start of Drivetrain and Mechanical | Drivetrain, Mechanical, Kafka |
| Drivetrain | Analysis of Power Transmission and Gearbox Options; completion report to EMS | EMS, Kafka |
| Mechanical | Analysis of Starting System, Auxiliary PTO, Mounting and Exhaust System; completion report to EMS | EMS, Kafka |
| EMS | Fan-in of Drivetrain and Mechanical; analysis of Engine Management and Monitoring/Control System; invalidation of outdated attempts | Kafka |
Each interface of the diagram is exactly one contract in analysis/libs/shared/src/contracts/ (§8.6). The provider implements it with implements, the consumer knows only the contract and receives the implementation via an injection token.
| Interface (diagram) | Contract (@shared/contracts) |
Provided (code) | Required (code, injection token) | OpenAPI |
|---|---|---|---|---|
| IAnalyze | analyze.ts: IAnalyze |
FluidsController, DrivetrainController, MechanicalController, EmsController (POST /analyze) |
Coordinator FluidsClient → FLUIDS_ANALYZE; Fluids DrivetrainClient → DRIVETRAIN_ANALYZE, MechanicalClient → MECHANICAL_ANALYZE; Drivetrain and Mechanical EmsClient → EMS_ANALYZE |
api/{fluids,drivetrain,mechanical,ems}.openapi.json |
| IConfig | config.ts: IConfig, subset IConfigLookup |
ConfigController (/configs) |
React UI (CRUD); Coordinator ConfigClient → CONFIG_LOOKUP (only getConfig) |
api/config.openapi.json |
| ISimulation | simulation.ts: ISimulation, ISimulationClient |
SimulationController in @shared (/simulation/status|down|up) |
Coordinator SimulationClient → SIMULATION_CLIENT |
api/{fluids,drivetrain,mechanical,ems}.openapi.json |
| IAnalysis | analysis.ts: IAnalysis |
Coordinator AnalysisController (POST /analysis/start, POST /analysis/:runId/retry/:cluster) |
React UI | api/coordinator.openapi.json |
| IStream | analysis.ts: IStream |
AnalysisController.stream (SSE /analysis/:runId/stream) |
React UI | api/coordinator.openapi.json |
| ISimulationProxy | analysis.ts: ISimulationProxy |
Coordinator SimulationController (/simulation/statuses, /simulation/:cluster/down|up) |
React UI | api/coordinator.openapi.json |
| IStatusEvents | events.ts: IStatusEvents; publisher IEventPublisher |
EventController.onStatusEvent (Coordinator, EMS) |
emitStatus via EVENT_PUBLISHER (KafkaClient) in all algorithm services, breaker fallbacks, ClusterGateway |
– (topic contract TopicContracts) |
| IResultEvents | events.ts: IResultEvents; publisher IEventPublisher |
EventController.onResultEvent (Coordinator) |
emitResult via EVENT_PUBLISHER in Fluids, Drivetrain, Mechanical, EMS |
– (topic contract TopicContracts) |
| IRetryCommands | events.ts: IRetryCommands; publisher IEventPublisher |
EventController.onRetryEvent (Fluids, Drivetrain, Mechanical, EMS) |
emitRetry via EVENT_PUBLISHER in the Coordinator (ClusterGateway.retry) |
– (topic contract TopicContracts) |
