Runtime View

Regular Analysis Run

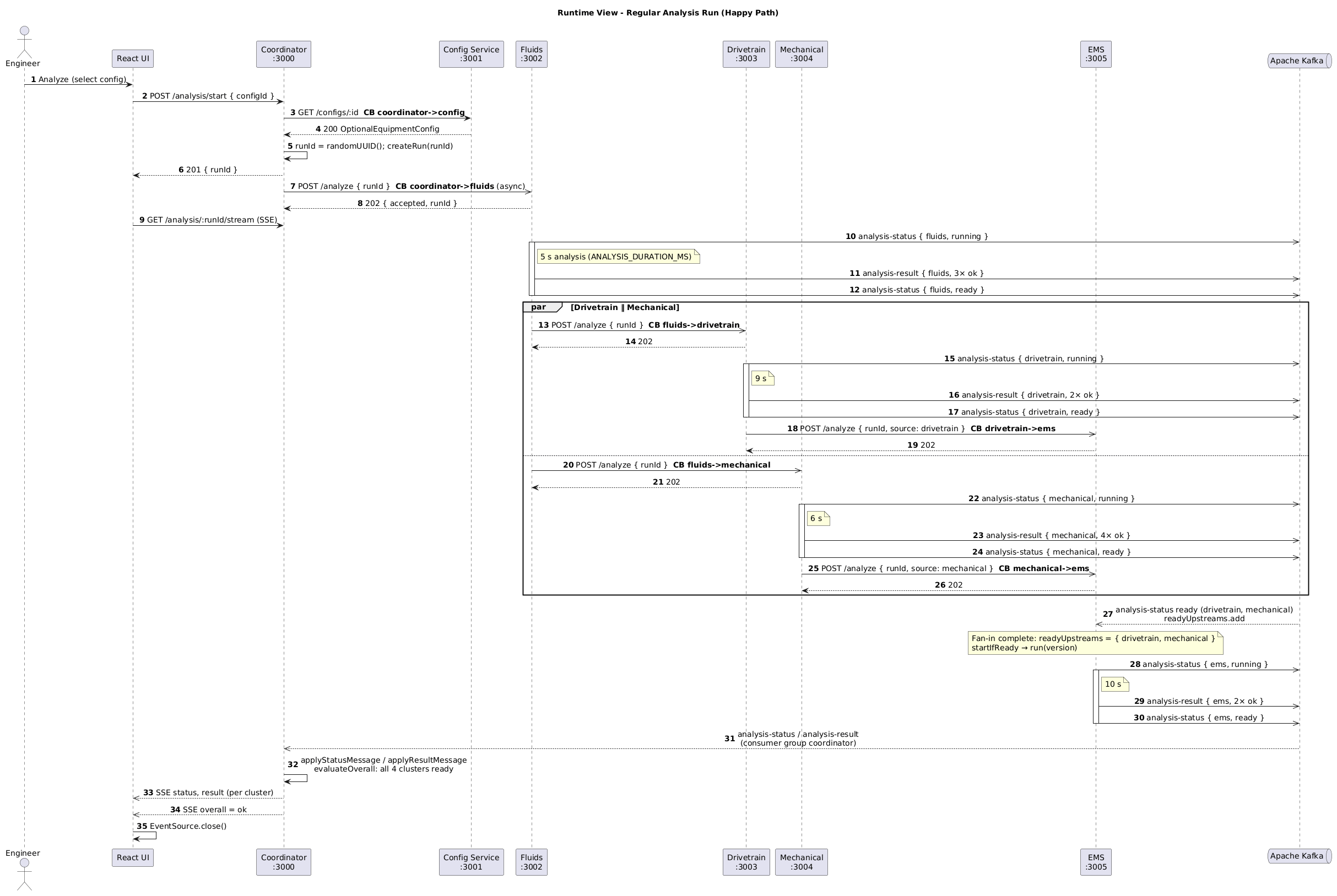

The happy path from the start via the anchor Fluids and the parallel execution of Drivetrain and Mechanical to the fan-in in EMS and the overall event takes about 25 s.

EMS Fan-in

EMS accepts at /analyze only source = drivetrain or source = mechanical in any order, because a set stores the ready upstreams per runId. In addition, EMS consumes analysis-status: a ready adds to the same set, a failed invalidates the attempt, removes the upstream and publishes failed for EMS. Execution starts only when the fan-in is complete; multiple reports do not lead to parallel runs because of Set, running and completed.

Retry

Read-side invalidation in the coordinator (RETRY_PROJECTION_SCOPE):

Retry of	Reset projection
Fluids	Fluids, Drivetrain, Mechanical, EMS
Drivetrain	Drivetrain, EMS
Mechanical	Mechanical, EMS
EMS	EMS

Unreachable Service and Circuit Breaker

Call	Circuit breaker	Fallback in code
Coordinator → Config service	coordinator->config	no fallback, but an errorFilter: 404 as “Config not found”, otherwise “Config service unavailable”.
Coordinator → Fluids	coordinator->fluids	failFluidsChain publishes failed for Fluids, Drivetrain and Mechanical; EMS follows with its own failed.
Fluids → Drivetrain	fluids->drivetrain	failed for Drivetrain.
Fluids → Mechanical	fluids->mechanical	failed for Mechanical.
Drivetrain → EMS	drivetrain->ems	failed for EMS.
Mechanical → EMS	mechanical->ems	failed for EMS.

The circuit breaker does not repeat the business run: it bounds the REST call and translates unreachability into a technical cluster status. The explicit retry remains separate from it.

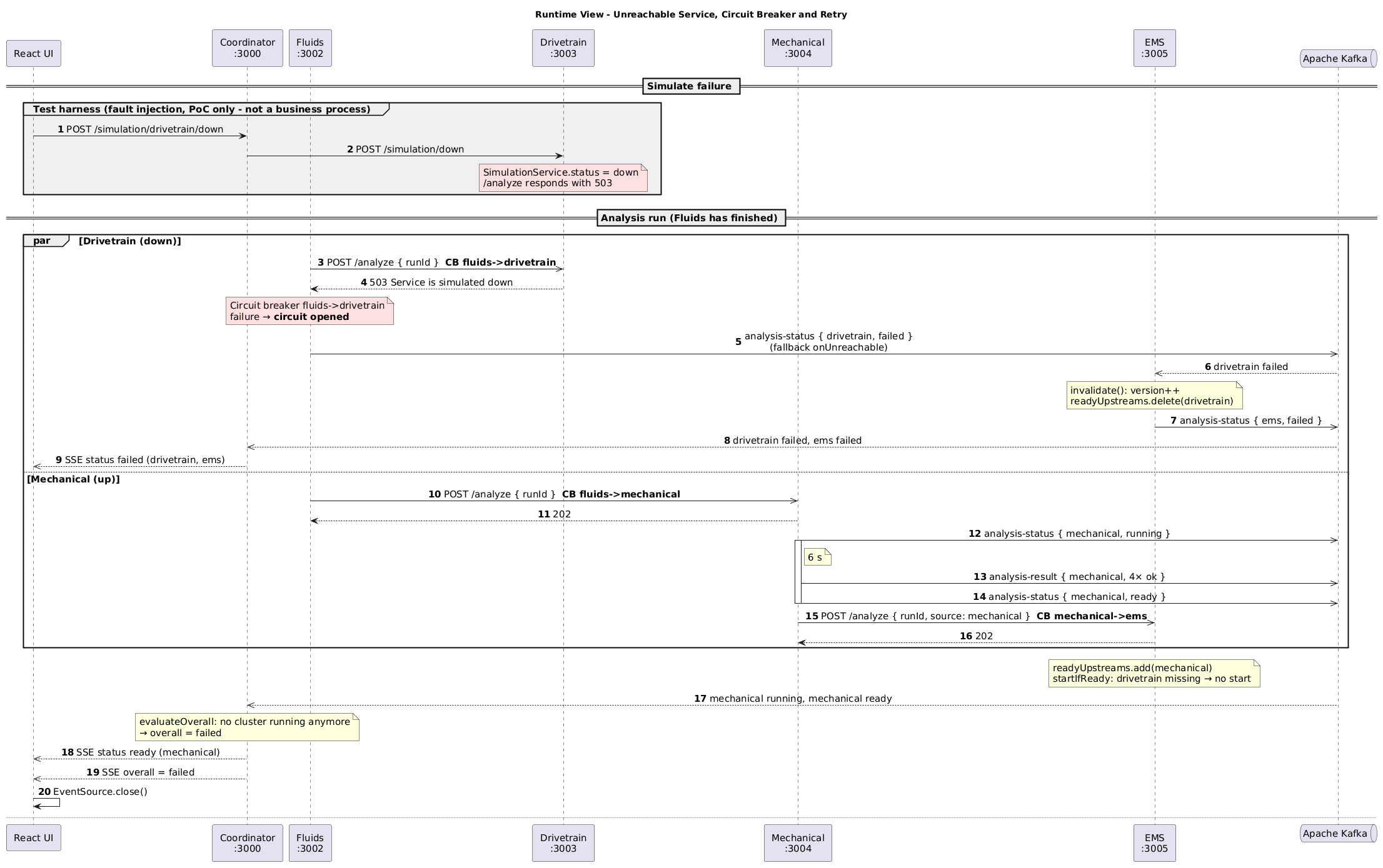

Failure: circuit breaker fluids→drivetrain opens, EMS invalidates

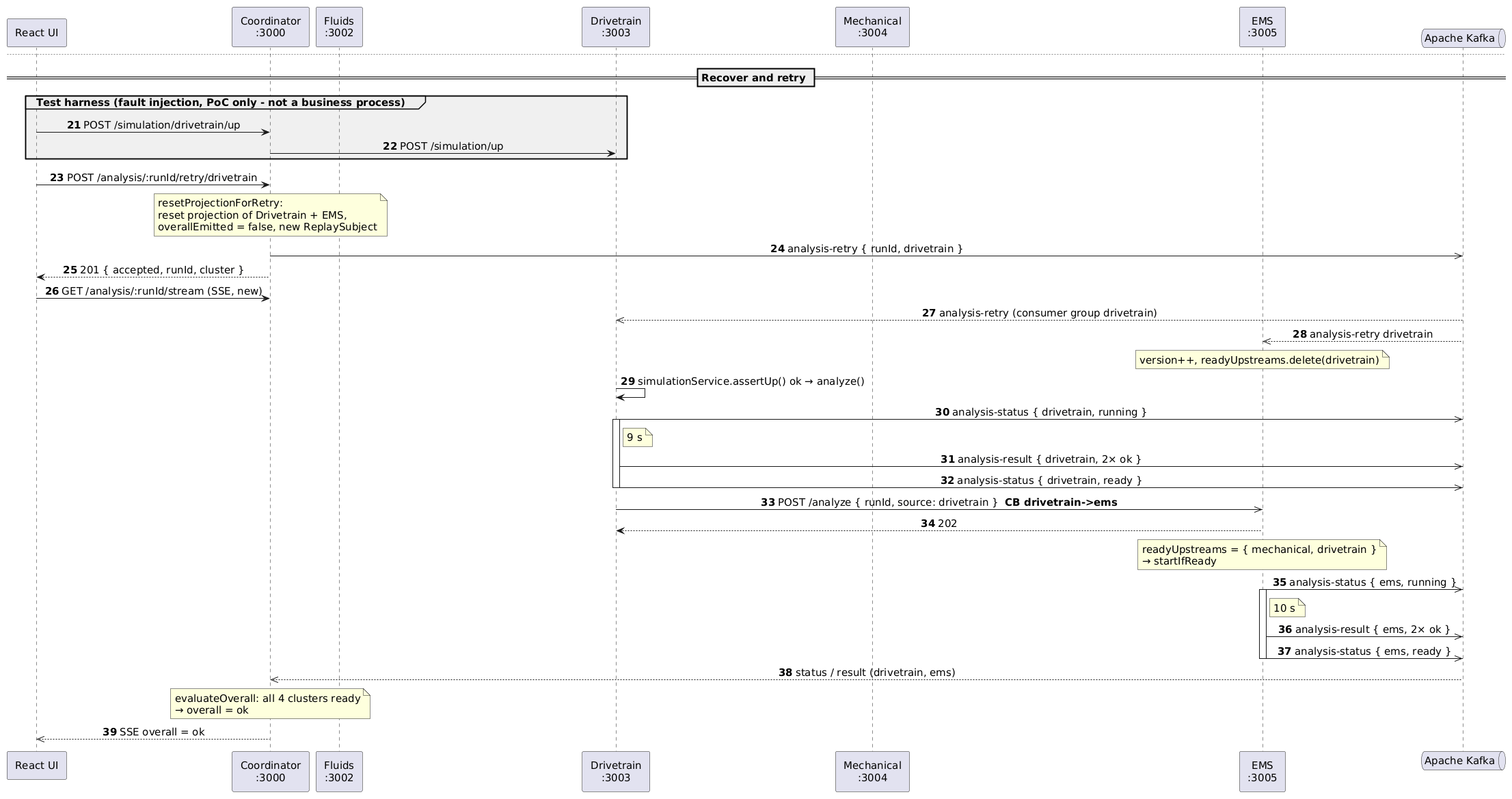

Recovery and targeted retry
