docToolchain v4 arc42 section 3
Context and Scope
docToolchain sits between documentation authors (human and AI) and their audiences. Authors write AsciiDoc sources in a version-controlled repository; docToolchain processes these sources and delivers the output to readers. In v4, LLM agents become first-class users of the system via daCLI’s MCP server.

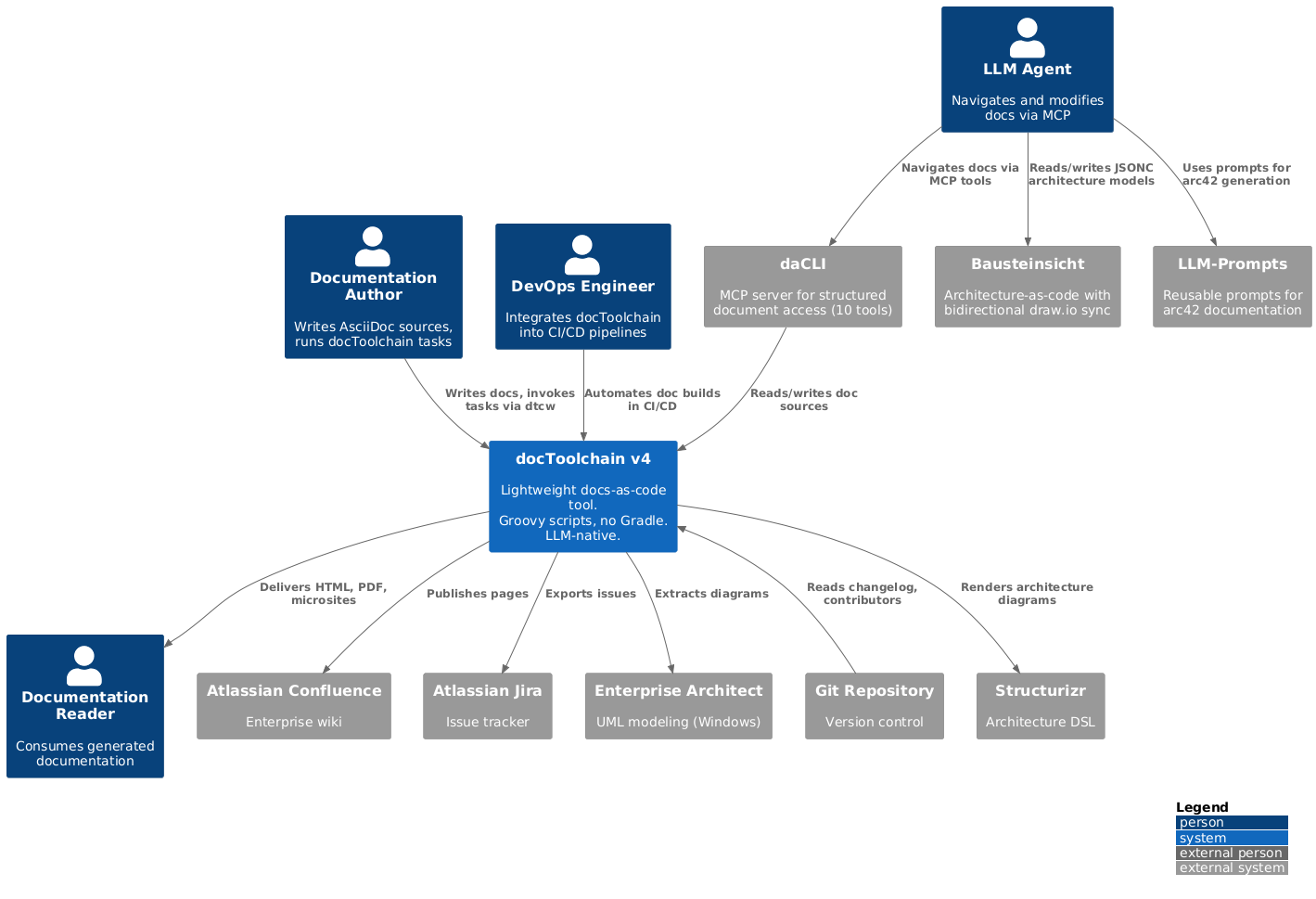

Business Context
| Communication Partner | Input to docToolchain | Output from docToolchain |
|---|---|---|
| Documentation Author | AsciiDoc source files, configuration (docToolchainConfig.groovy), CLI commands via dtcw |
Generated HTML, PDF, DocBook, Reveal.js slides, microsite |
| LLM Agent (via daCLI) | MCP tool calls: get_structure, get_section, search, update_section, insert_content |
Structured section content, metadata, validation results |
| Bausteinsicht | JSONC architecture models, draw.io diagram exports (PNG, PlantUML) | — (consumed as images/includes in AsciiDoc sources) |
| LLM-Prompts | Prompt-guided AsciiDoc output (arc42 chapters, ADRs, quality scenarios) | — (consumed as doc sources) |
| Atlassian Confluence | — | HTML pages with attachments, page hierarchy, labels |
| Atlassian Jira | Issues (via JQL queries), sprint data, custom fields | — |
| Enterprise Architect | UML diagrams (via COM automation, Windows only) | — |
| Git Repository | Commit history, contributor metadata | — |
| Structurizr | Architecture model (DSL files) | — |
Technical Context
| External System | Protocol / Interface | Configuration |
|---|---|---|
| daCLI | MCP protocol via stdio. LLMs call 10 tools for document navigation, search, and modification. | dacli-mcp --docs-root <path> — points to docToolchain’s src/docs/ directory. |
| Atlassian Confluence | REST API v1 (Server/Data Center) or v2 (Cloud). HTTPS with Basic Auth or Bearer Token. | confluence.api, confluence.credentials, confluence.spaceKey in config |
| Atlassian Jira | REST API v3 (Cloud) or v1 (Server). HTTPS with Basic Auth or Bearer Token. | jira.api, jira.credentials, jira.exports[].jql in config |
| Enterprise Architect | COM automation via VBScript. Reads .eap / .eapx project files. |
exportEA.connection, exportEA.packageFilter in config |
| Structurizr | File-based. Parses Structurizr DSL, renders to PlantUML. | structurizr.workspace.filename in config |
| Git | Local CLI (git log, git shortlog). No network access required. |
changelog.dir, changelog.cmd in config |
| AsciiDoctor CLI | External tool (gem/brew/apt), auto-installed by dtcw in a pinned version (ADR-6). Processes AsciiDoc to HTML5, PDF, DocBook via CLI batch invocation. |
inputFiles, inputPath, outputPath in config |
| Groovy Site Generator | Custom Groovy script replacing jBake. Reads AsciiDoc + Groovy SimpleTemplates, generates static HTML microsite. | microsite.* config section (backward-compatible with v3 jBake metadata headers) |
