Quality Requirements

The quality goals from the Introduction and Goals section drive every architecture decision in docToolchain v4. This section refines those goals into a structured quality tree and concrete, measurable scenarios that serve as acceptance criteria for the architecture.

Quality scenarios QS-1 through QS-8 were derived from v3 codebase analysis. Quality scenarios QS-9 through QS-19 were derived from the v4 architecture requirements.

Quality Requirements Overview

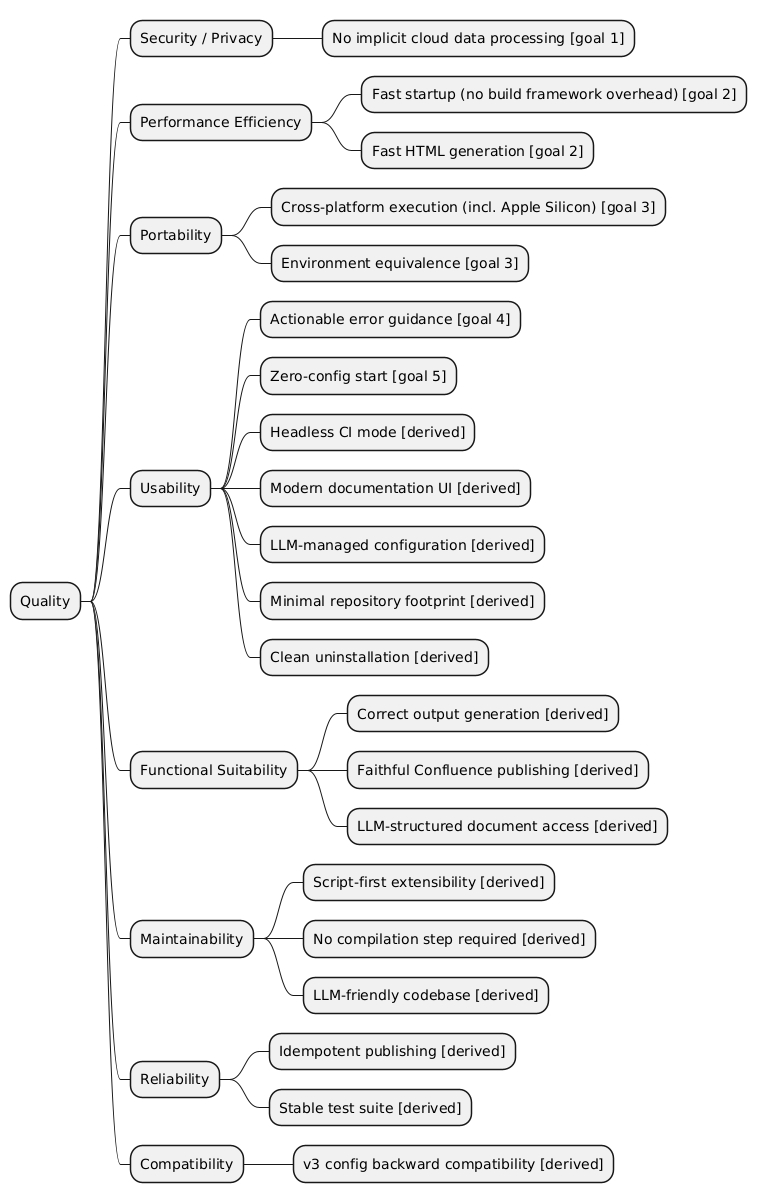

The quality tree organizes requirements by ISO 25010 categories. Each leaf maps to one or more quality scenarios below. Each leaf is annotated as either concretising one of the five Chapter 1.2 top quality goals ([goal N]) or as a [derived] quality requirement that elaborates beyond the top goals — this is correct arc42, not a defect.

Quality Scenarios

The following scenarios are the evaluation framework for all architecture decisions (Section 09). Each ADR must state which quality scenarios it supports or compromises. Each scenario is written in the six-part quality-attribute-scenario form (Source, Stimulus, Artifact, Environment, Response, Response Measure) and annotated with the Chapter 1.2 top goal it concretises, or marked derived.

Carried forward from v3

ID	Goal	Source	Stimulus	Artifact	Environment	Response	Response Measure
QS-1	derived (extensibility)	Contributor	Wants to add a new export feature (e.g., export to Notion).	scripts/ directory	Development	They create one Groovy script and register it; no build-system knowledge required.	No compilation step needed; the new task appears in ./dtcw tasks output.
QS-2	goal 3 (cross-platform)	User	Runs ./dtcw docker generateHTML on a project previously built with ./dtcw local generateHTML.	Generated HTML	Docker vs. local	Docker execution produces the same HTML output as local execution.	Output files byte-identical (excluding timestamps in HTML meta tags).
QS-3	goal 5 (ease of adoption)	New developer	Clones a project containing dtcw and AsciiDoc sources and runs ./dtcw local generateHTML.	dtcw + AsciiDoc sources	Fresh workstation	They get rendered documentation, including automatic Java and docToolchain installation.	Time from first command to viewing HTML under 5 minutes.
QS-4	derived (reliability)	Author / CI	Triggers Confluence publishing twice for unchanged documentation.	Confluence pages	Network, Confluence reachable	The second run detects unchanged content (MD5 hash) and skips the update.	No new page versions created; attachments and labels preserved.
QS-5	derived (headless CI)	CI/CD pipeline	Runs ./dtcw local generateHTML in a container without a TTY.	dtcw wrapper	Headless CI (no TTY)	dtcw detects headless mode (DTC_HEADLESS=true) and suppresses prompts; build completes unattended.	Exit code 0 on success, non-zero on failure; no process hangs awaiting input.
QS-6	goal 5 (ease of adoption)	User	Runs ./dtcw local generateHTML on a machine without a JDK.	dtcw wrapper	Workstation without JDK	dtcw detects the missing JDK, downloads and installs it locally, then proceeds.	No manual Java install; installed JDK reused on later runs.
QS-7	derived (stable test suite)	Developer / CI	Executes the test suite.	Spock / BATS test suites	Local or CI	All tests pass; environment-dependent tests skip gracefully.	Zero test failures; execution under 15 seconds.
QS-8	goal 2 (performance)	User	Runs ./dtcw local generateHTML on ~50 AsciiDoc pages with PlantUML diagrams.	Document generation pipeline	Local, docToolchain installed	HTML output is generated.	Generation completes in under 20 seconds.

New for v4

ID	Goal	Source	Stimulus	Artifact	Environment	Response	Response Measure
QS-9	goal 2 (performance)	User	Runs ./dtcw local generateHTML a second time (docToolchain already installed).	dtcw + Groovy scripts	Local, warm install	Task starts immediately, with no build-framework init, dependency resolution, daemon negotiation, or build-graph computation.	Startup under 3 seconds; end-to-end for 50 pages under 10 seconds.
QS-10	goal 3 (cross-platform)	User	Runs ./dtcw local generateSite on Apple Silicon (M1/M2/M3/M4).	Custom site generator (MicrositeBaker)	macOS ARM64	Site generation completes without errors or platform-specific workarounds.	No JNI/native-library issues; same output as on x86_64.
QS-11	derived (script-first)	Contributor	Wants to fix a bug in the Confluence publishing logic.	Groovy scripts	Development	They edit a Groovy script directly and re-run; no compilation, no JAR rebuild.	Change-to-test cycle under 5 seconds; no ./gradlew core:jar step.
QS-12	derived (LLM friendliness)	LLM agent (via daCLI)	Needs to read, navigate, and modify generated documentation.	daCLI MCP server (10 tools)	MCP over stdio	daCLI provides structured access; docs follow Semantic Anchor conventions.	Any section located with at most 3 tool calls; token usage under 10% of full-file reading.
QS-13	derived (modern UI)	Reader	Opens a docToolchain-generated microsite in a browser.	Generated microsite	Modern browser	The site shows responsive layout, dark mode, fast full-text search, and clear navigation.	Visual quality comparable to Starlight/Nextra/Diataxis; page load under 1 second.
QS-14	derived (v3 compatibility)	Upgrading user	Moves from v3 to v4 without changing docToolchainConfig.groovy.	docToolchainConfig.groovy	Existing v3 project	v4 dtcw reads the existing config and runs all previously configured tasks.	Zero config changes for basic usage; deprecated features warn but do not fail.
QS-15	derived (LLM-managed config)	User via LLM	Asks an LLM to configure Confluence publishing.	docToolchainConfig.groovy	LLM editing session	The LLM adds only the necessary deviating settings; the config stays minimal.	Config contains only explicit deviations from defaults; LLM reads, explains, and edits it correctly without hallucinating defaults.
QS-16	goal 1 (no implicit cloud processing)	User	Runs ./dtcw generateHTML with diagrams while diagramServer is set to https://kroki.io/.	Diagram rendering (asciidoctor-diagram)	External service configured	docToolchain prints a clear warning (“Diagramm-Quelltexte werden an kroki.io gesendet. Für lokale Verarbeitung setze diagramServer = 'docker'.”) requiring informed consent.	Zero external API calls unless an external diagramServer URL is explicitly set; default is docker (local); external URLs warn on every run.
QS-17	goal 4 (actionable error guidance)	User	Hits a fixable failure (locked file, missing config, wrong credentials, unreachable API, missing tool).	DtcException + top-level handler	Any environment	docToolchain prints what to do next — which file to close, which config to set, which command to run — not a diagnosis.	Every user-recoverable error carries a remediation step; zero stack traces except for bugs (exit code 99).
QS-18	derived (minimal repo footprint)	User	Adds docToolchain to an existing project repository.	Project repository	Any	Only dtcw and docToolchainConfig.groovy are committed; JARs, scripts, templates, and the Java runtime install under $HOME/.doctoolchain/.	Exactly 2 files added (plus optional dtcw.ps1/dtcw.bat); build/ git-ignored; no Gradle wrapper, no build.gradle.
QS-19	derived (clean uninstallation)	User	Decides to remove docToolchain from their system.	$HOME/.doctoolchain/ installation	Any	Deleting $HOME/.doctoolchain/ removes binaries, JARs, Java runtime, and caches; no shell profiles or services were touched.	Zero side effects after rm -rf $HOME/.doctoolchain/; no orphaned PATH entries, env vars, or modified shell configs.
